വിവരണം:

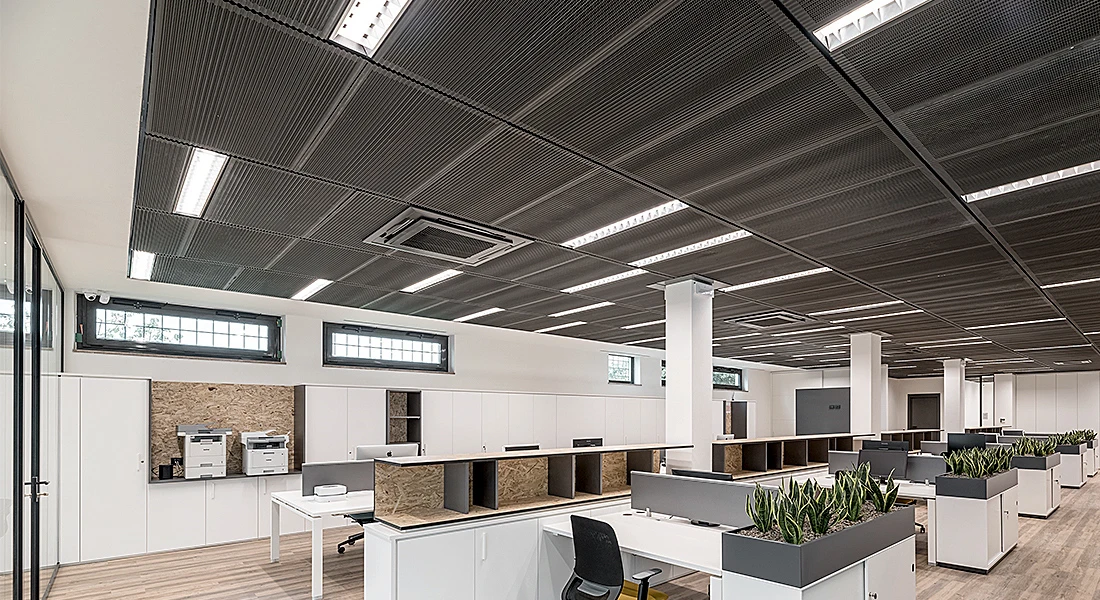

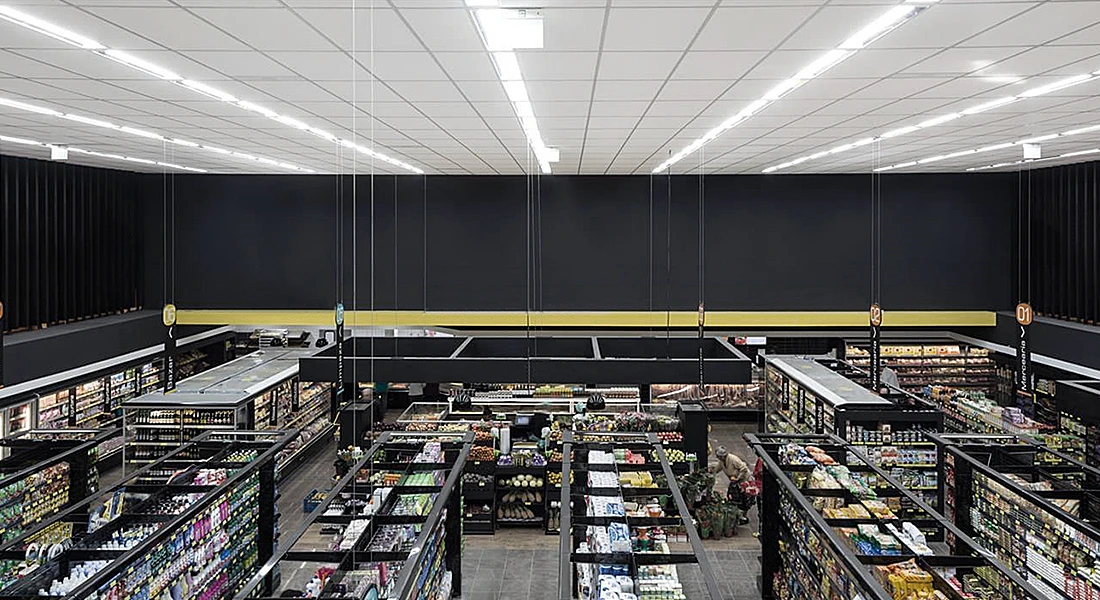

Magnetic LED Retrofit is an LED module with up to 130lm/w (Ra>90, R9>50, SDCM<3). Magnet tool-free installation, easy to maintain, saves labor costs. It is widely used to replace the traditional T5/T8 fluorescent tube light inside grille lights in offices, schools, hypermarkets, and retail stores.









സവിശേഷത:

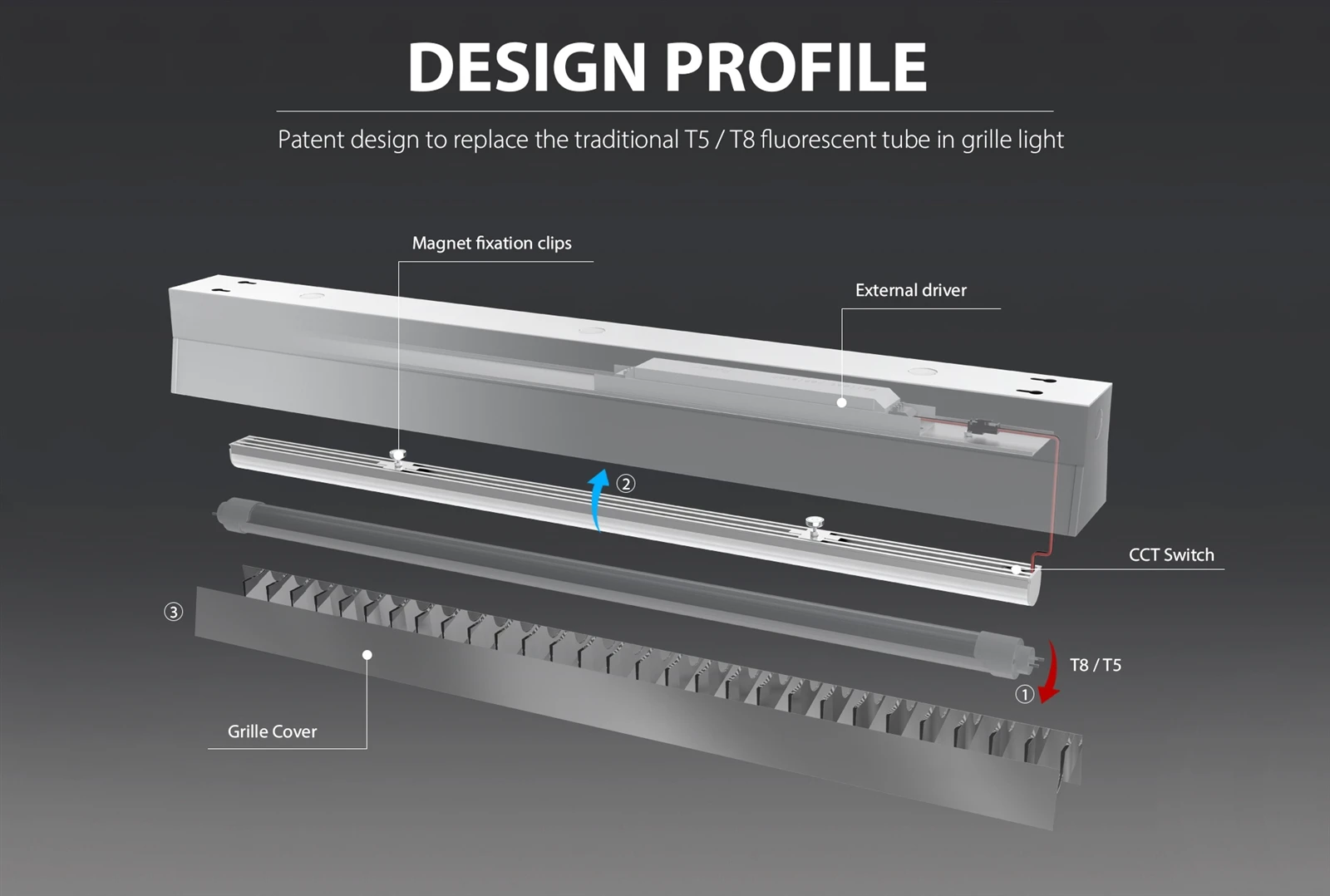

>ട്രോഫറിൽ പരമ്പരാഗത T5/T8 ഫ്ലൂറസൻ്റ് ട്യൂബ് മാറ്റിസ്ഥാപിക്കുന്നതിനുള്ള പേറ്റൻ്റ് ഡിസൈൻ

>ശക്തിയും നിറവും (3CCT) ഫീൽഡ്-അഡ്ജസ്റ്റ് ചെയ്യാവുന്നത്

> Up to 130lm/w@4000lm (Ra>90,R9>50,SDCM<3)

>മാഗ്നെറ്റ് ടൂൾ-സൗജന്യ ഇൻസ്റ്റാളേഷൻ, പരിപാലിക്കാൻ എളുപ്പമാണ്, തൊഴിൽ ചെലവ് ലാഭിക്കുക

>ഫ്ലൂറസെൻ്റ് ലാമ്പുകളെ അപേക്ഷിച്ച് 80% കൂടുതൽ ഊർജ്ജ ലാഭം

Send Inquiry
Download
Description
Technical Parameters

ആമുഖം:

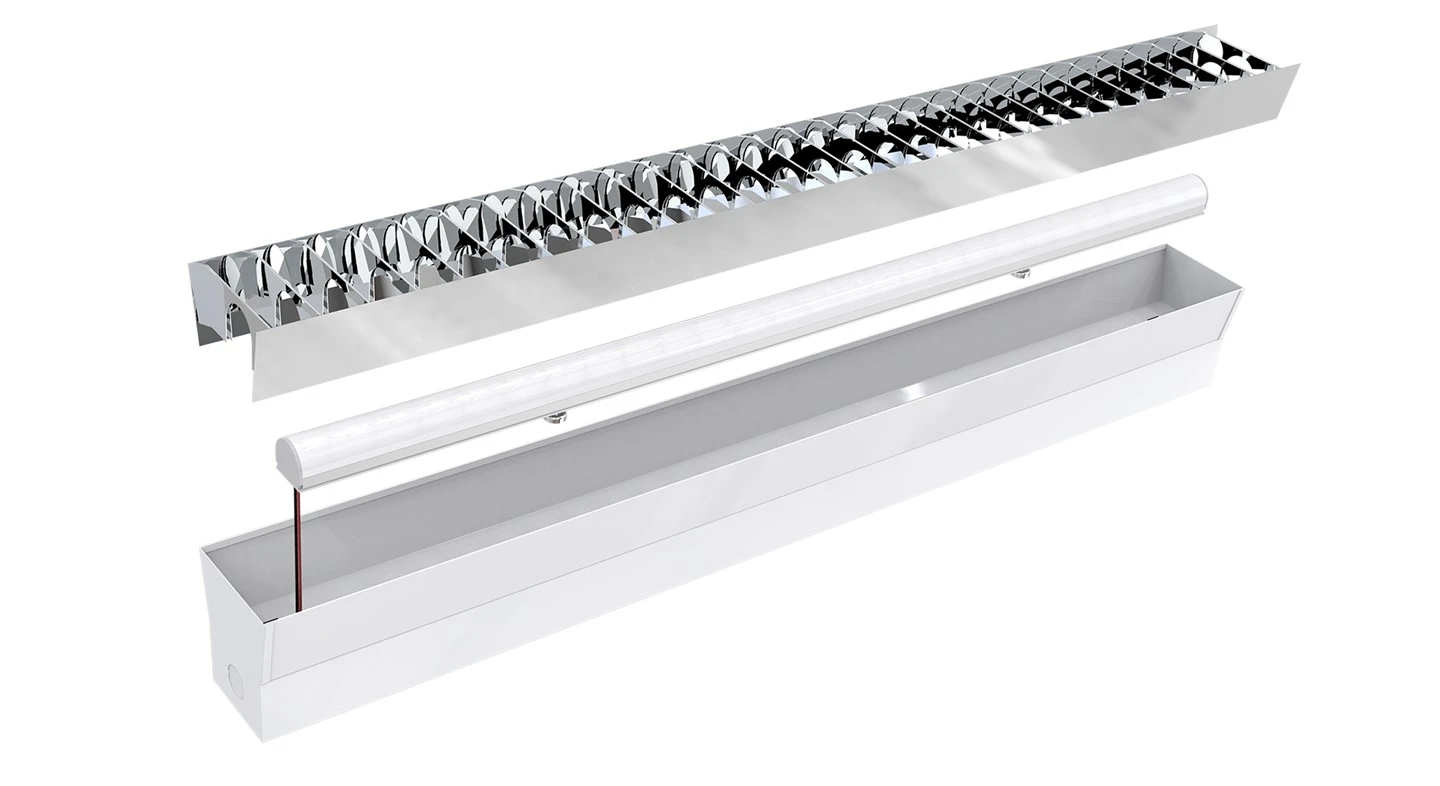

Toppo Magnetic LED Retrofit is a time-saving alternative to directly replace fluorescent lamps with LEDs. High efficacy up to 135 lm/w (Ra>90, R9>50, SDCM<3), power switch from 14-30W, 3CCT switch from 3000K/4000K/5000K, various sizes of L540mm, L1160mm, L1460mm. With magnetic, tool-free installation, in just 1 minute, your existing fluorescent tube fixtures (recessed, strip, wrap, etc.) can be converted to energy-efficient, long-lasting LED lights while preserving the look of your space.



ഓർഡർ കോഡ്

റേറ്റുചെയ്ത പവർ

LM/W

ല്യൂമെൻ

SDCM/Ra

IP ക്ലാസ്

ഉൽപ്പന്നത്തിൻ്റെ അളവ്

GW/CTN

QTY/CTN

TU100-02N-PT1-24F10-01 14W/24W ടൈപ്പ്.120 ടൈപ്പ്.1680/2880 SDCM<3/Ra80,90 IP20 L540xW26xH24 9.91 കിലോ 25 പീസുകൾ
TU100-04N-AT1-30F10-01 14W/30W ടൈപ്പ്.130 ടൈപ്പ്.1820/3900 SDCM<3/Ra80,90 IP20 L1160xW26xH24 14.93 കിലോ 25 പീസുകൾ
TU100-05N-AT1-30F10-01 14W/30W ടൈപ്പ്.130 ടൈപ്പ്.1820/3900 SDCM<3/Ra80,90 IP20 L1460xW26xH24 17.4 കിലോ 25 പീസുകൾ

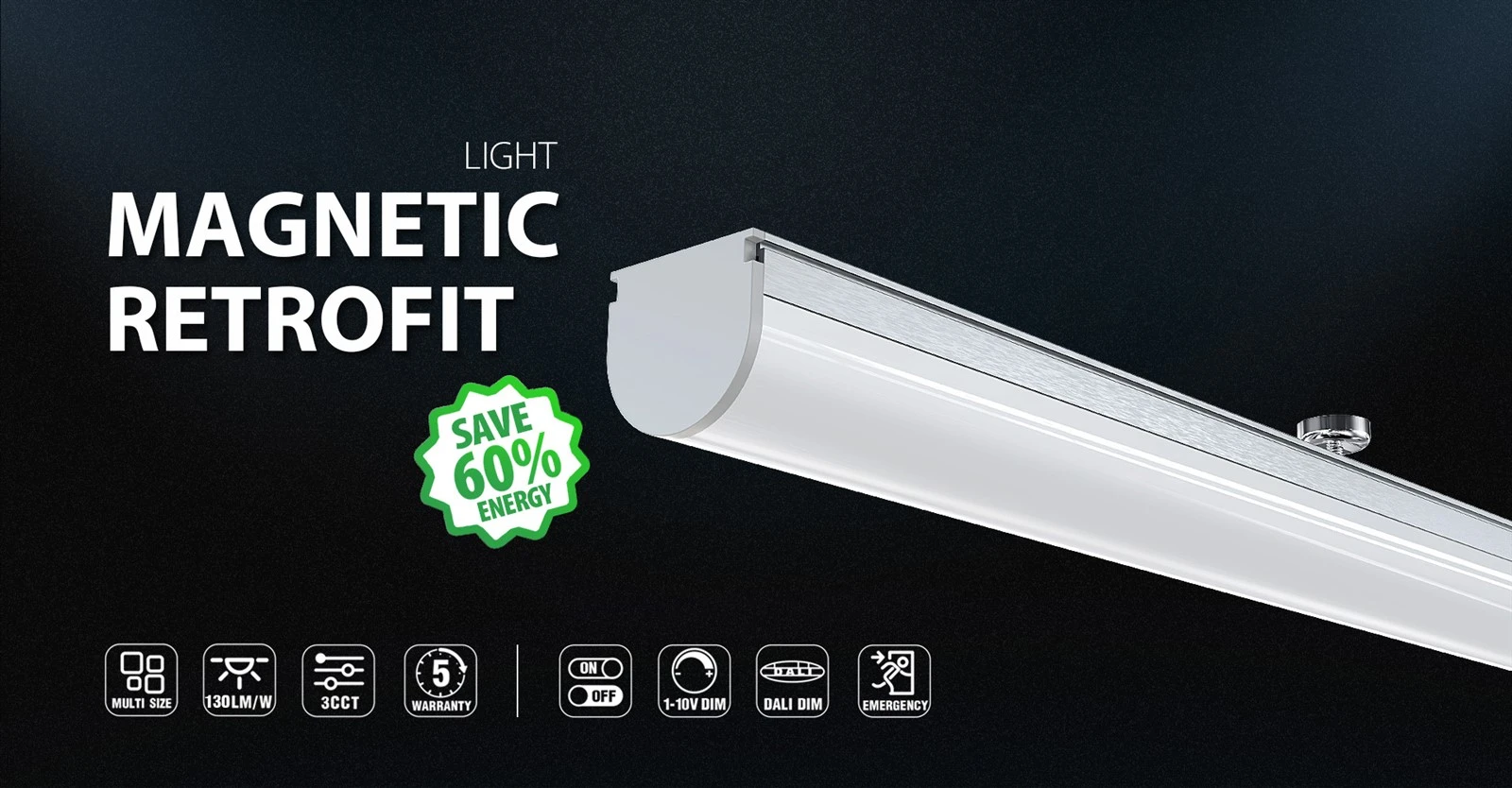

Magnetic Retrofit -1

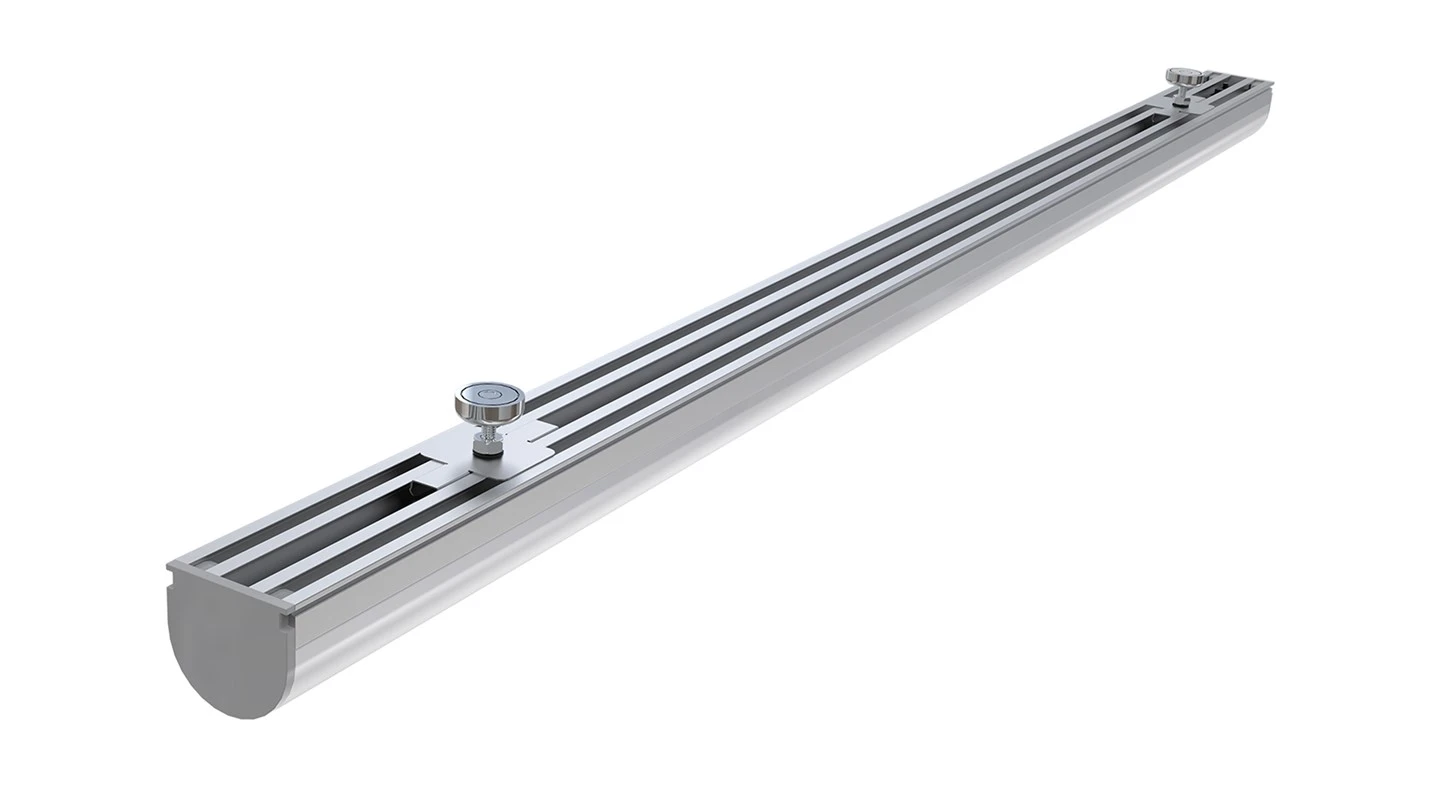

Magnetic Retrofit -2

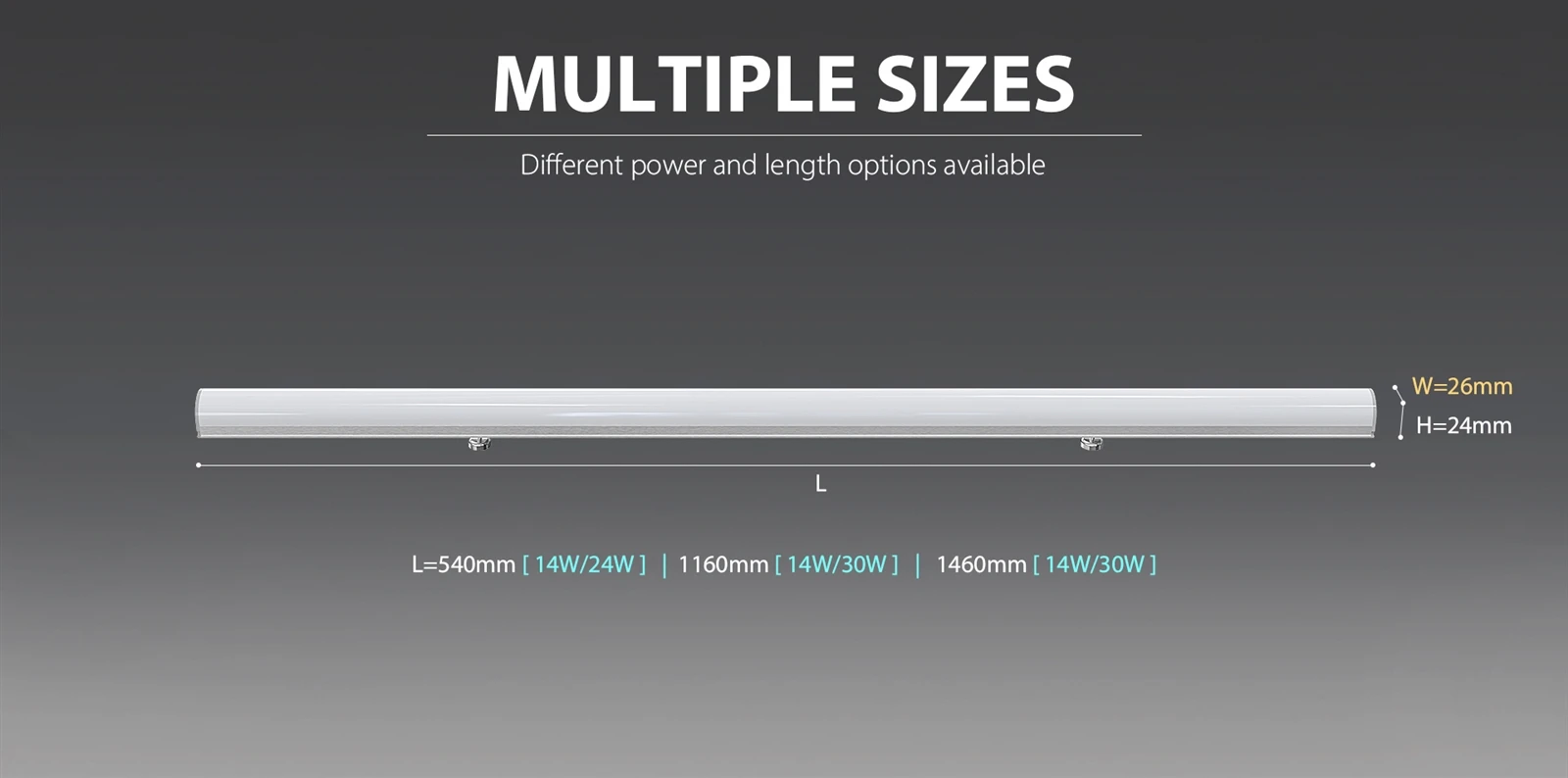

Magnetic Retrofit -3
